Product Overview

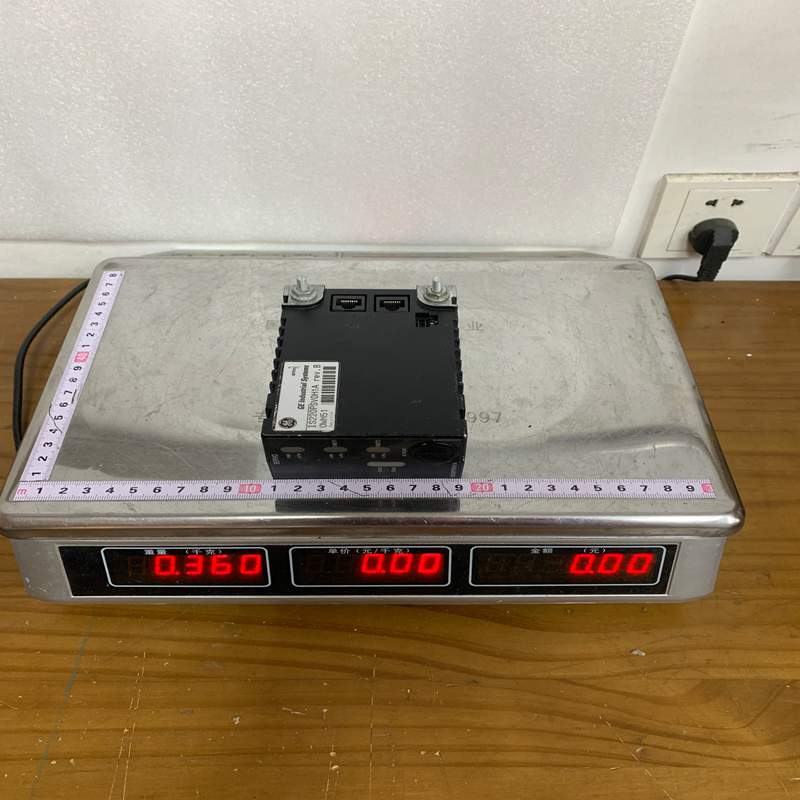

The GE IS220PSVOH1A is a specialized Servo Control I/O Pack belonging to General Electric’s Mark VIe Distributed Control System (DCS) and Speedtronic Mark VIe turbine control platforms.
It serves as the electrical and control interface between the Mark VIe controller network and electro-hydraulic / electro-pneumatic servo valves used in heavy-duty gas turbines, steam turbines, and industrial rotating equipment. The module receives position feedback from Linear Variable Differential Transformers (LVDTs) or Rotary Variable Differential Transformers (RVDTs), performs closed-loop position algorithms, and outputs precise drive current to position the servo actuators.
Technical Specifications
| Parameter | Specification Details |
| Product Model | IS220PSVOH1A |
| Product Family / System | Mark VIe Control System / Speedtronic Series |
| Component Type | Servo Control I/O Pack |
| Processor Type | Dual 32-bit internal processors for processing & safety supervision |
| Input Voltage | 28.0 V DC nominal (27.4 V to 28.6 V DC operational range) |
| Power Consumption | Approx. 6.5 W |
| Ethernet Communication | Dual redundant RJ-45 Ethernet ports (100Base-TX) connecting to IONet |
| Servo Current Output | Up to 2 or 3 independent servo coil outputs (configurable ±10mA, ±20mA, ±40mA, ±80mA, ±120mA drive currents) |
| Position Feedback Inputs | Supports up to 6 LVDT / RVDT inputs (single, dual, or triple redundant channels) |
| LVDT Excitation Frequency | 3.2 kHz ± 5% sinusoidal excitation voltage output |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Redundancy Modes | Supports Simplex, Dual, and TMR (Triple Modular Redundant) configurations |
Key Advantages
-
High-Precision Closed-Loop Control: Delivers ultra-responsive, highly accurate valve positioning essential for critical turbine fuel and steam admission control.
-
Triple Modular Redundancy (TMR) Support: Fully compatible with GE’s TMR architecture, offering high availability and fault-tolerant operation in mission-critical applications.
-
Hot-Swappable Module Replacement: Supports live online replacement without shutting down the main turbine control system, reducing plant downtime.
-
Direct IONet Integration: Communicates natively over redundant Ethernet-based IONet backbones for fast data exchange directly with the main control processors.
-
On-Board Diagnostics: Continuous self-monitoring including coil continuity checks, LVDT excitation failure detection, and wire-break detection.
Important Usage & Installation Precautions
-
Coil Current Matching: Ensure the output drive current settings (e.g., ±10mA or ±40mA) configured in the ControlST software precisely match the coil requirements of the connected Moog or Woodward servo valve.
-
LVDT Calibration: Proper field calibration (zero and span adjustments) of connected LVDTs/RVDTs must be completed via ControlST before commissioning to prevent improper valve travel.
-
Shielding and Grounding: LVDT feedback lines and servo coil wires carry low-amplitude signals and excitation voltages. Ensure individual twisted-pair shielded cables are used and grounded at one end to prevent EMI noise interference.
-
Redundant Power Supply Lines: Ensure both primary and secondary 28V DC power inputs are sourced from clean, redundant Mark VIe power distribution modules (PPDA).
-
ESD and Handling: Sensitive electronics require proper Electrostatic Discharge (ESD) wrist-strap precautions when handling or replacing the pack on the terminal board.
Applications
-
Gas Turbine Fuel Valve Control: Controls the primary, secondary, and premix fuel control valves on GE Frame 6, 7, and 9 gas turbines.
-
Steam Turbine Admission & Stop Valves: Direct drive positioning for main steam stop, control (governor), and intercept valves in combined-cycle and fossil fuel power plants.
-
Variable Inlet Guide Vanes (VIGV): Controls hydraulic actuators that adjust compressor inlet guide vane angles for optimized aerodynamic airflow.
-
Heavy Industrial Process Actuators: Hydroelectric turbine gate control and large-scale hydraulic positioning systems requiring high-reliability servo drives.
