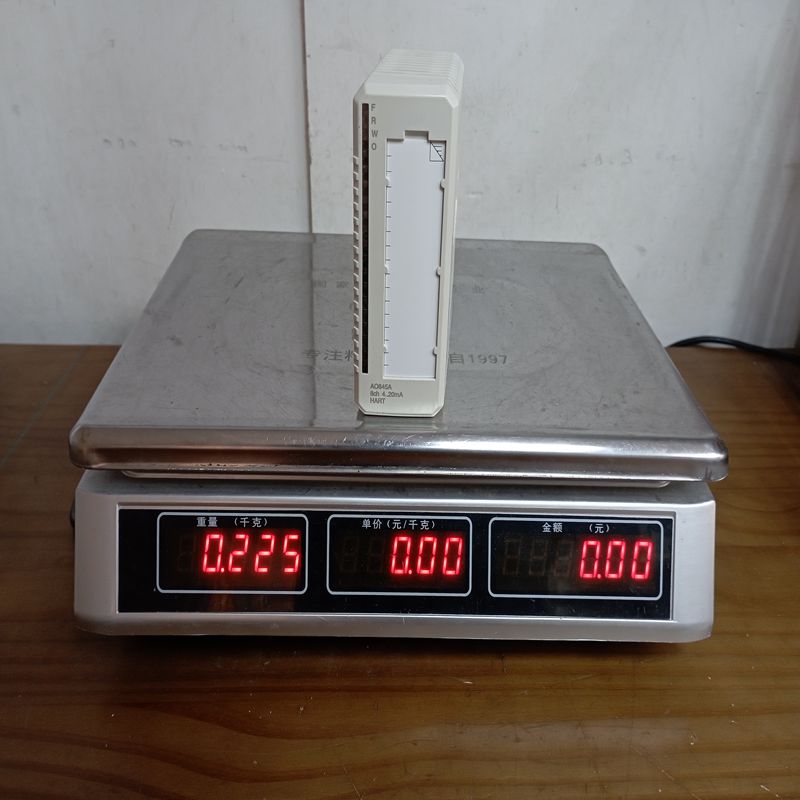

ABB AO845A 模拟量输出模块

Product Overview

The ABB AO845A (Article Number: 3BSE045584R1) is a high-performance, 8-channel analog output module belonging to ABB’s S800 I/O system family. It is fully compatible with ABB System 800xA, Advant OCS, and Compact Product Suite platforms.

Designed for demanding process automation environments, the AO845A supports both single (non-redundant) and redundant configurations. It provides 8 unipolar 4–20 mA current output loops for controlling field devices, featuring onboard digital-to-analog converters, HART pass-through communication, and continuous self-diagnostics.

Technical Specifications

Key Advantages

• High Availability & Redundancy: Supports seamless redundant pair mounting (with redundant MTUs like TU842/TU843). If one module fails, the master module commands a bumpless transfer to the backup unit without disturbing field loops.

• HART Pass-Through Protocol: Allows smart positioners, control valves, and I/P converters to pass HART maintenance and diagnostic data straight through to asset management tools (such as ABB Device Library Wizard).

• Comprehensive Self-Diagnostics: Continually monitors internal power supplies, D/A conversion circuits, loop continuity (open-circuit detection), and short circuits.

• Output Set as Predetermined (OSP): In the event of a communication lost or controller failure, channels can be programmed to hold their last valid value, drive to a minimum (4 mA), or go to a predefined safe fallback level.

• G3 Harsh Environment Protection: Built with ISA-S71.04 G3 conformal coating, making it highly resistant to corrosive atmospheric pollutants found in chemical plants and refineries.

Important Usage & Installation Precautions

• MTU Keying & Compatibility: Always ensure the mechanical keying code on the Mounting Termination Unit (MTU) matches the AO845A module before insertion to prevent damage to backplane connector pins.

• Field Wiring Shielding: Use twisted-pair shielded cables for field signal connections, particularly on channels using HART communication, to prevent high-frequency noise interference.

• Power Supply Integrity: Provide stable, filtered 24 V DC external power to the MTU. Insufficient process voltage will trigger an “External Channel Error” diagnostic alert.

• Cabinet Thermal Management: When mounted vertically in compact MTU arrangements, maximum ambient operating temperature drops to 40 °C (104 °F). Ensure sufficient airflow or active cooling inside the cabinet.

• Hot Swapping Procedure: The module supports Hot-Swap under power, but ensure the retaining latches are fully engaged during insertion to prevent transient communications glitches on the ModuleBus.

Applications

• Process Control Valve Actuation: Driving 4–20 mA electro-pneumatic positioners and control valves in oil, gas, and chemical processes.

• Speed Reference for Variable Frequency Drives (VFDs): Transmitting accurate analog speed commands to large motor drives in pumping and fan systems.

• Boiler & Burner Control Systems: Modulating fuel gas control valves and air dampers in power generation and utility boilers.

• Critical Redundant Control Loops: Serving as the output interface in high-availability SIL2 / SIL3 safety-instrumented systems (SIS) and primary DCS loops.
